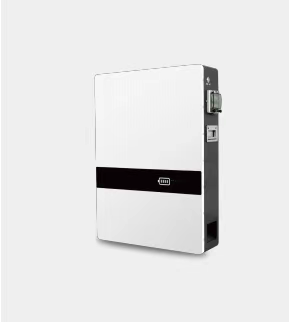

Wall mounted energy storage battery / LST-W10000

Household wall mounted energy storage batteries LST-W10000 51.2V 10.44kWh Lithium battery

Product Introduction

    This battery is a battery system suitable for home energy storage and home photovoltaics. It is possible to set charging and discharging current limiting, fixed voltage output, direct output and other working modes in the monitoring system, and has multiple protection functions.

Product Features

 Flexible deployment

Brand new iron phosphate A-grade battery cell

Cycle life 6000 times/10 years

Protection level IP65, suitable for indoor and outdoor installation

 Intelligent battery cell balance

Flexible setting of charging and static balance strategies

Effectively extending service life.

Multiple protection functions

 Multiple specifications

    10kWh / 20kWh / 30kWh / 40kWh

Operation Parameters

Specification Parameters	LST-W10000	Rated Electric Quantit	10.44kWh
Rated Voltage	51.2V	Charging Voltage	58.4V
Discharge Voltage Range	44.8V-58.4V	Maximum Charging Current	100A
Continuous Charging Current	100A	Recommended Charging Current	150A
Continuous Discharge Current	100A	Maximum Discharge Current	10440W
Rated Output Power	5120W	DOD	85%
Connection Method	1-8in parallel	Communication Method	CAN / RS4 85
Life	≥6000 25℃ 0.5C	Storage Temperature	-10℃ ~ +35℃
Charging Operating Temperature	0℃ ~ +55℃	Discharge Working Temperature	-10℃ ~ +55℃

Mechanical Parameters

Net Weight (kg)	96kg	Gross Weight (kg)	125kg
Product Size (mm)	790*560*200 mm	Package Size (mm)	950*720*400 mm

Under specific conditions, performance will be limited when the temperature is below 0℃ or above 40℃. The final parameters come from different product batches. This parameter is for reference only.
