Wall mounted energy storage battery / LST-W5000

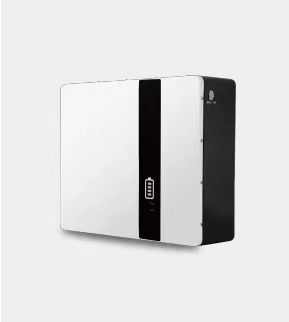

Household wall mounted energy storage batteries LST-W5000 Lithium Battery 51.2V 5kWh

Product Introduction

    This battery is a battery system suitable for home energy storage and home photovoltaics. It is possible to set charging and discharging current limiting, fixed voltage output, direct output and other working modes in the monitoring system, and has multiple protection functions.

Product Features

  Flexible deployment

Brand new iron phosphate A-grade battery cell

Cycle life 6000 times/10 years

Protection level IP65, suitable for indoor and outdoor installation

  Intelligent battery cell balance

Flexible setting of charging and static balance strategies

Effectively extending service life.

Multiple protection functions

  Multiple specifications

    5kWh / 10kWh / 15kWh / 20kWh

Operation Parameters

Specification Parameters	LST-W5000	Rated Electric Quantit	5.22kWh
Rated Voltage	51.2V	Charging Voltage	57.6V
Discharge Voltage Range	43.2V-57.6V	Maximum Charging Current	40A
Rated Output Power	3840W	DOD	90%
Connection Method	1-8in parallel	Communication Method	CAN / RS485
Life	≥6000 25℃ 0.5C	Storage Temperature	-10℃ ~ +35℃

Mechanical Parameters

Net Weight (kg)	48.5kg	Gross Weight (kg)	52.5kg
Product Size (mm)	536.3*464*180.5 mm	Package Size (mm)	592*522*252 mm

Under specific conditions, performance will be limited when the temperature is below 0℃ or above 40℃. The final parameters come from different product batches. This parameter is for reference only.
