Description: The LST-AIO5500 series household energy storage all-in-one (All in One) is an advanced modular design that integrates energy storage inverters, battery modules, and controllers into an integrated energy storage system. The installation is extremely simple, and users can conveniently, quickly, and intuitively view the working status through the touch screen or APP, achieve parameter modification, and flexibly achieve power scheduling, storage, and load management through multiple working modes of Smart Teeth.
Update Time: 2023-07-28Visits: 884

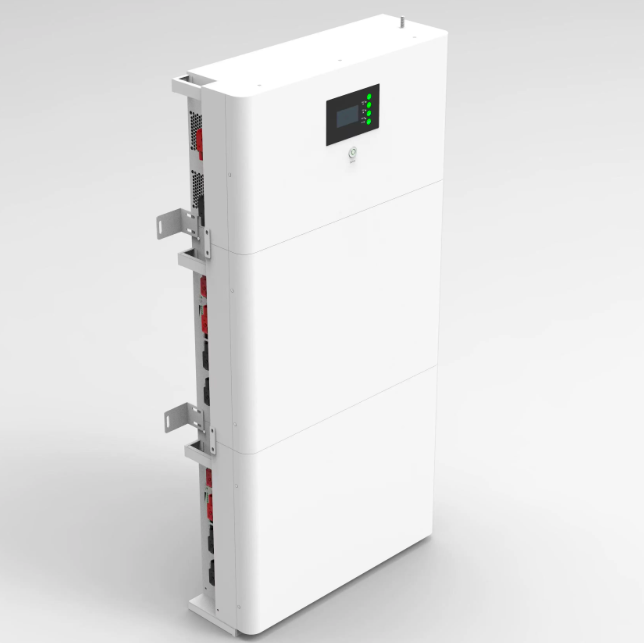

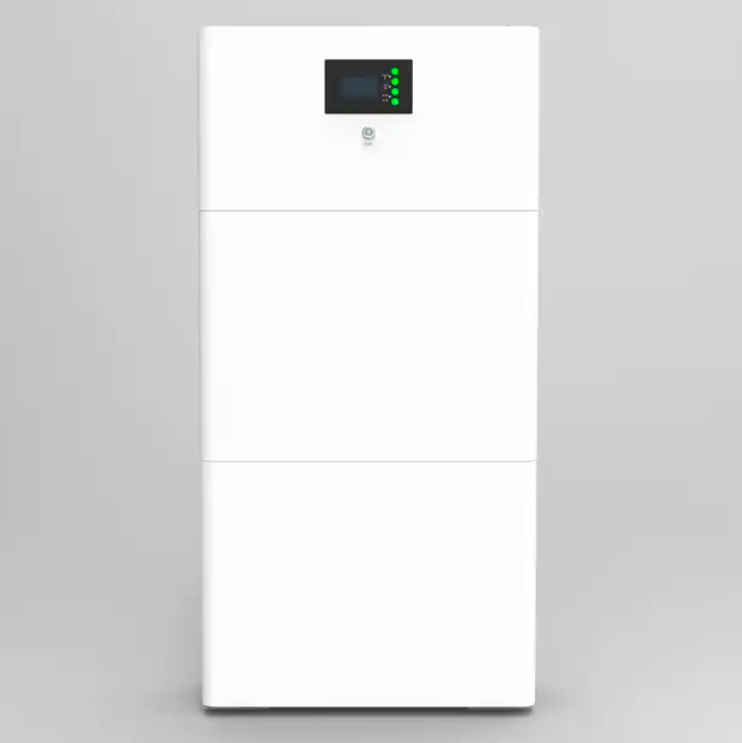

The LST-AIO5500 series household energy storage all-in-one machine (All in One) is an advanced modular design that integrates energy storage inverters, battery modules, and controllers into an integrated energy storage system. The installation is extremely simple, and users can easily, quickly, and intuitively view the working status through the touch screen or app, achieve parameter modification, support multiple working modes, and flexibly achieve power dispatch, storage, and power load management.
Integrated design for easy installation
New lithium iron phosphate A battery cell
Pure sine wave solar inverter
Output power factor 1
High photovoltaic input voltage range
Independent battery design
Built in 100AMPPT solar charger
Battery balancing function optimizes battery performance and extends its lifecycle
There are two output modes: mains bypass and inverter uninterruptible power supply
Intelligent speed regulating fan, efficient heat dissipation, and extended system service life
Rated Power | 5500w | Rated Voltage | 230VAC |
Charging Range | 170-280VAC | Frequency | 50Hz-60Hz |
AC Voltage | 230VAC±5% | Maximum Power | 11000VA |
Efficiency | ≥93.5% | Switching Time | 10ms |
Wave Form | Sine Wave | Rated Voltage of Battery | 51.2V |
Battery Voltage Range | 40-60V | Battery Type | Lithium Battery |
Maximum PV Input Voltage (Open Circuit) | 500VDC | Maximum PV Access Power | 5500W |
MPPT Operating Voltage Range | 120-450VDC | Maximum Charging Current | 100A |
Net Weight (kg) | 10kg | Product Size (mm) | 587*310*197mm |
Under specific conditions, performance will be limited when the temperature is below 0℃ or above 40℃. The final parameters come from different product batches. This parameter is for reference only.
Specifications | 48 100 | Rated Power | 5.12kWh |
Rated Voltage | 51.2V | Discharge Voltage Range | 44.8-57.6V |
Rated Charging Current | 20A@25℃ | Maximum Charging Current | 50A@25℃ |
Maximum Discharge Current | 100A@25℃ | Maximum Output Power | 5120W |
Discharge Depth | 90% | Communication Method | RS485/RS232/CAN |
Life | ≥5000 25℃ 0.5C | Storage Temperature | -15℃ ~ +60℃ |
Working Temperature | Charge：0℃ ~ 50℃ Discharge：-10℃ ~55℃ | ||
Net Weight (kg) | 65kg | Product Size (mm) | 587*430*197mm |
Under specific conditions, performance will be limited when the temperature is below 0℃ or above 40℃. The final parameters come from different product batches. This parameter is for reference only.
