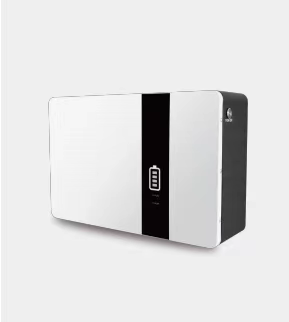

Wall mounted energy storage battery / LST-W2500

Description: Wall mounted energy storage battery/LST-W2500, this battery is suitable for home energy storage and home photovoltaic battery systems. It is possible to set charging and discharging current limiting, fixed voltage output, direct output and other working modes in the monitoring system, and it also has multiple protection functions.

Update Time: 2023-07-28
Visits: 943

Product consultation Contact Us

Detailed introduction

Product Features

Flexible deployment

Brand new iron phosphate A-grade battery cell； Cycle life 6000 times/10 years；Protection level IP65, suitable for indoor and outdoor installation；

Intelligent battery cell balance

Flexible setting of charging and static balance strategies；Effectively extending service life；Multiple protection functions；

Multiple specifications

2.5kWh / 5kWh / 7.5kWh / 10kWh

Operation Parameters

Specification Parameters	LST-W2500	Rated Electric Quantit	2.66kWh
Rated Voltage	51.2V	Charging Voltage	57.6V
Discharge Voltage Range	43.2V-57.6V	Maximum Charging Current	35A
Rated Output Power	1792W	DOD	90%
Connection Method	1-8in parallel	Communication Method	CAN OR RS485
Life	≥6000 25ºC 0.5C	Storage Temperature	-10ºC ~ +35ºC

Mechanical Parameters

Net Weight (kg)	31kg	Gross Weight (kg)	33kg
Product Size (mm)	536365196 mm	Package Size (mm)	605432258 mm

Under specific conditions, performance will be limited when the temperature is below 0 ºC or above 40 ºC. The final parameters come from different product batches. This parameter is for reference only.
